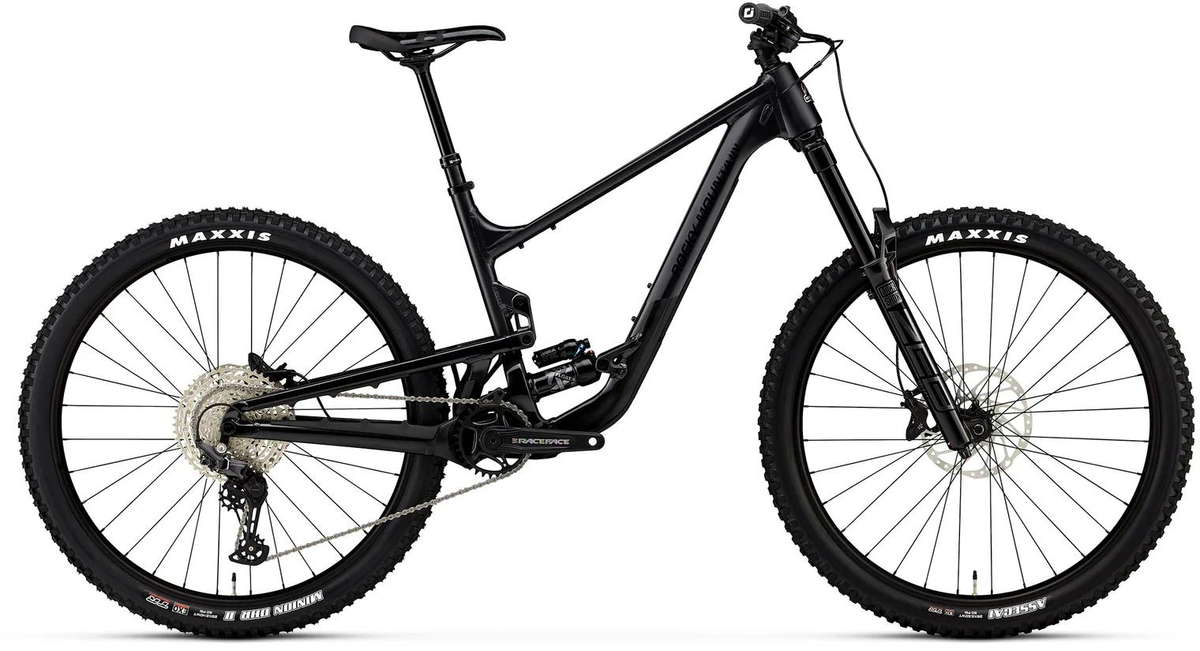

Rocky Mountain Altitude A30
Details
From commanding the clock to holding your own on weekend rides. The Altitude Alloy is purpose-built to go fast and demolish steep trails. Its total enduro capabilities can help you secure that “top step” and tackle demanding group rides with confidence. The Altitude Alloy features internal routing, size-specific tune, and the refined RIDE-4™ adjustment system. With so much capability in your corner, it’s time to push limits, climb faster, and charge.
Specs
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | BSA Bottom Bracket | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel. FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
| Headset | FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Rims/Wheels | WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl |
| Hubs | Shimano TC500 Boost 148mm / Shimano TC500 | 15x110m |
| Spokes | 2.0 Stainless |
| Tires | F: Maxxis Minion Assegai 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready // |
| Crankset | Race Face Ride Cinch | 32T | 24mm Spindle | Crankarm Length: SM = 165mm | MD - XL = 170mm |
| Chainwheel | 32T |
| Bottom Bracket | Shimano Threaded BBMT501-B |
| Chain | Shimano M6100 |
| Rear Derailleur | Shimano Deore 12spd |
| Rear Cogs | Shimano Deore 10-51T 12spd |
| Shifters | Shimano Deore 12spd |
| Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Tape/Grips | ODI Elite Pro Lock On |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
| Brakes | Shimano MT6120 4 Piston | Metal Pads |
| Saddle | WTB Volt 142 |
| Seat Post | X Fusion Manic Composite 30.9mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
* Subject to change without notice.
