Details

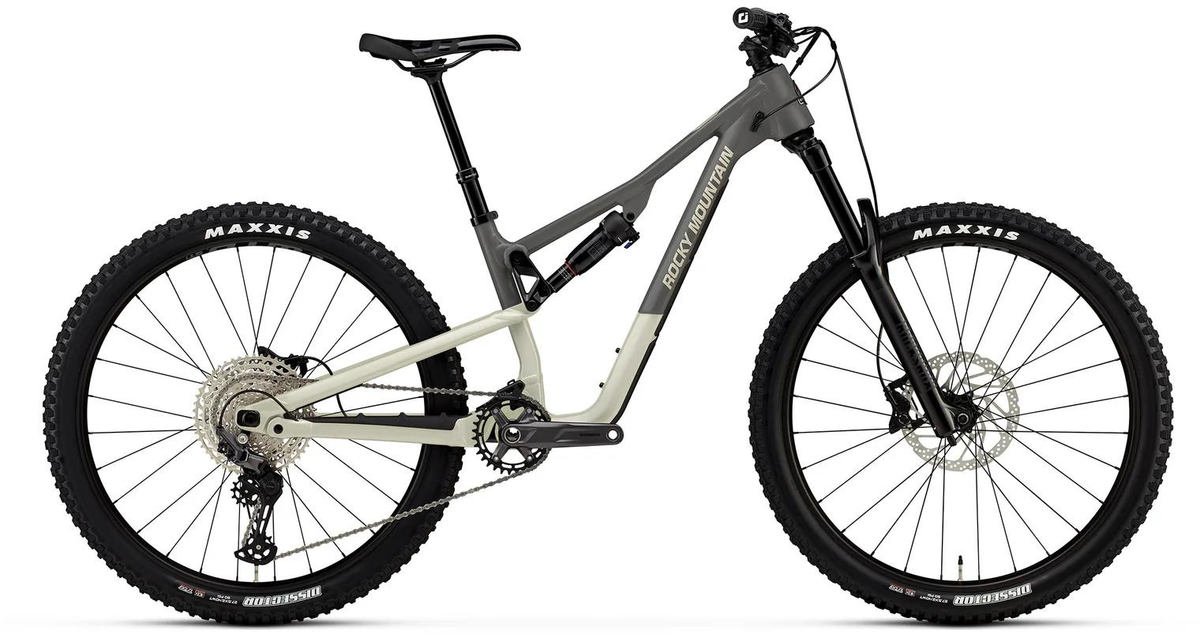

In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Specs

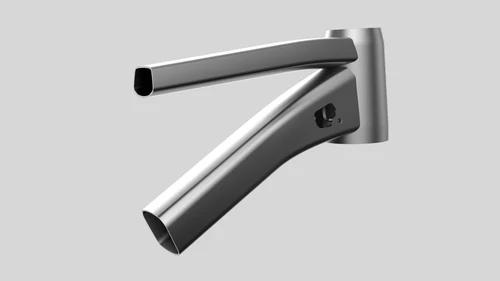

Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle |
---|---|
Fork | RockShox 35 Gold RL 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset |
Headset | FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
Rear Shock | RockShox Deluxe Select RT | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
Rims/Wheels | WTB ST i30 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
Hubs | Shimano TC500 Boost 28h |
Tires | F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready // |
Crankset | Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
Bottom Bracket | Shimano SM-BBMT500 |
Chain | Shimano M6100 |
Rear Derailleur | Shimano Deore 12spd |
Rear Cogs | Shimano Deore 10-51T 12spd |
Shifters | Shimano Deore 12spd |
Handlebars | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
Tape/Grips | ODI Elite Pro Lock On |
Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm |
Brakes | Shimano MT4120 4 Piston | Resin Pads |
Saddle | WTB Volt 142 |
Seat Post | X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm |
Weight | 36.014|16.37 KGS |
* Subject to change without notice.
